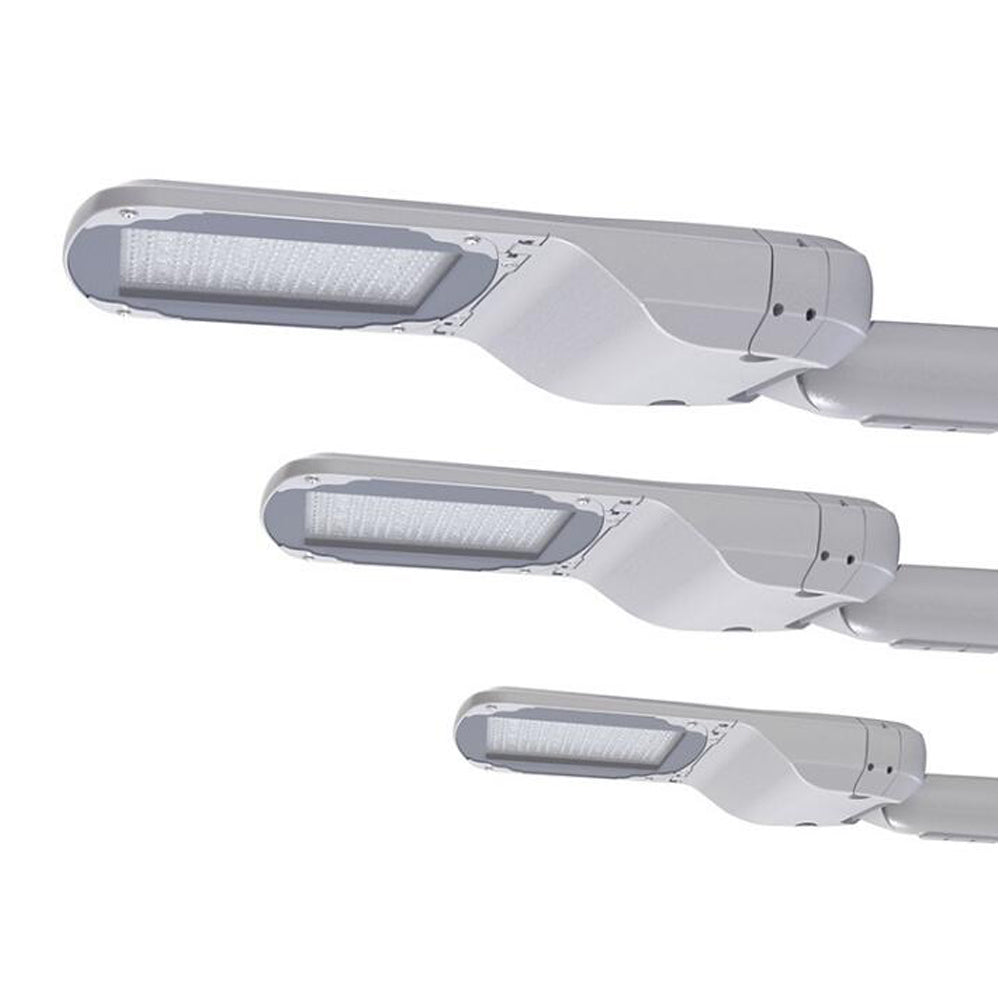

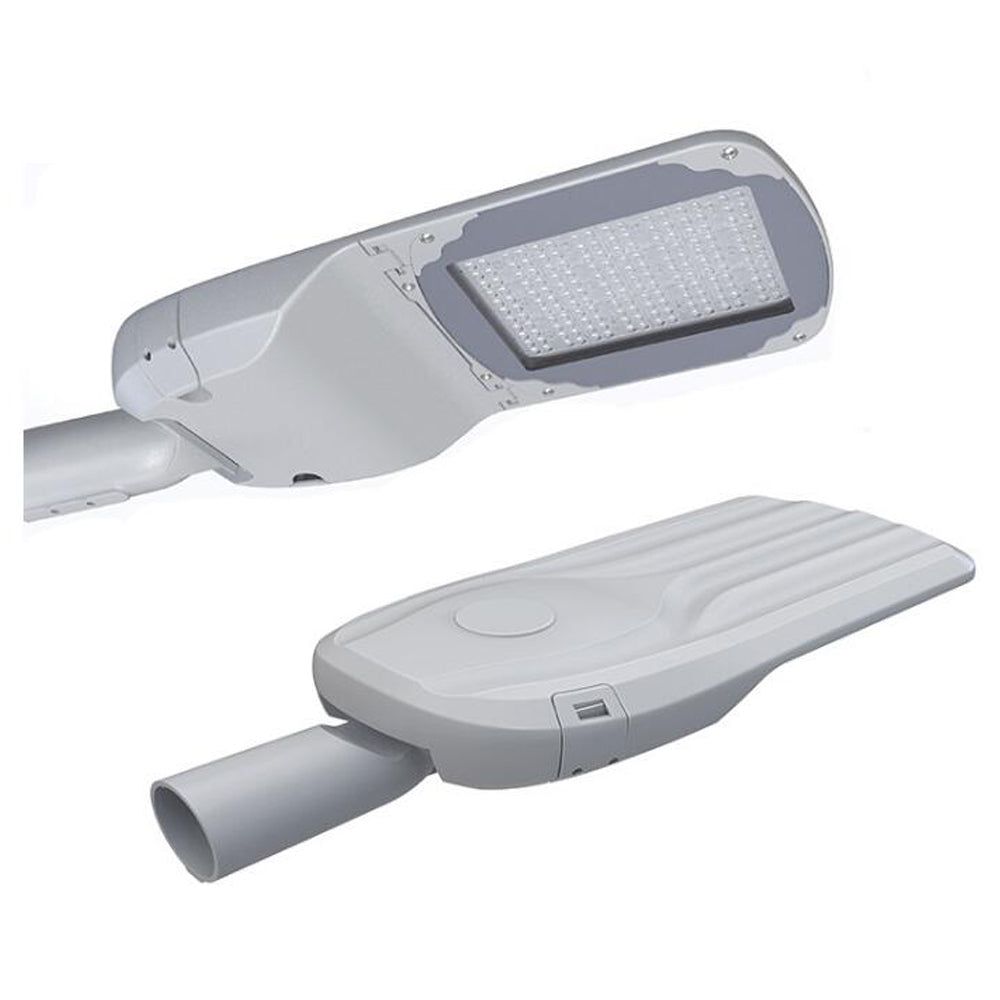

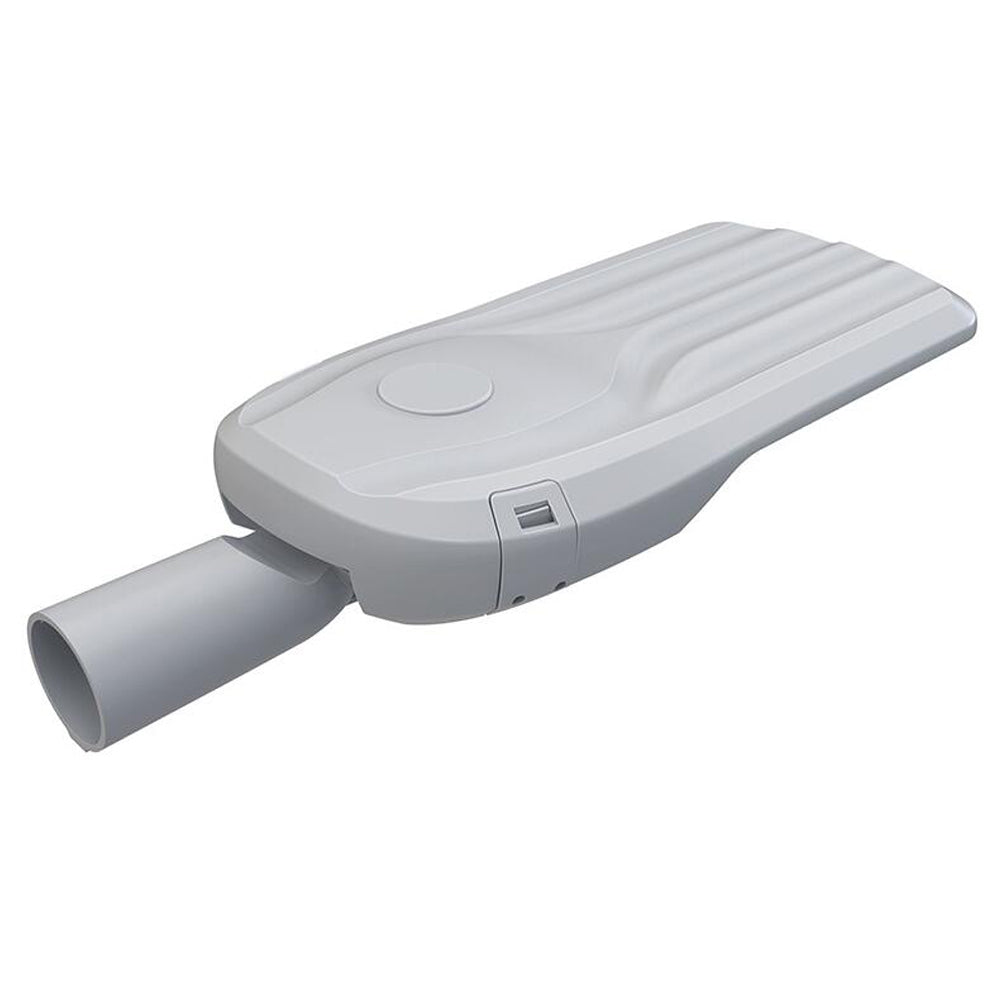

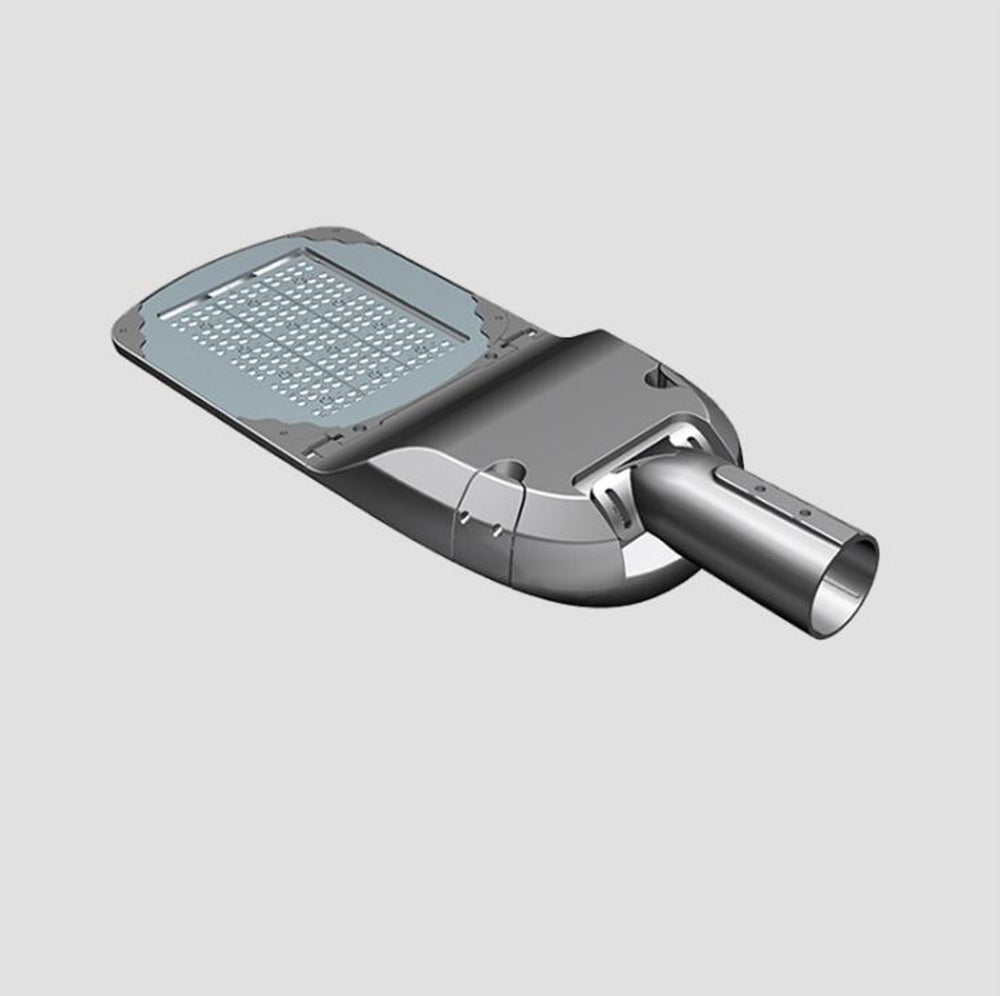

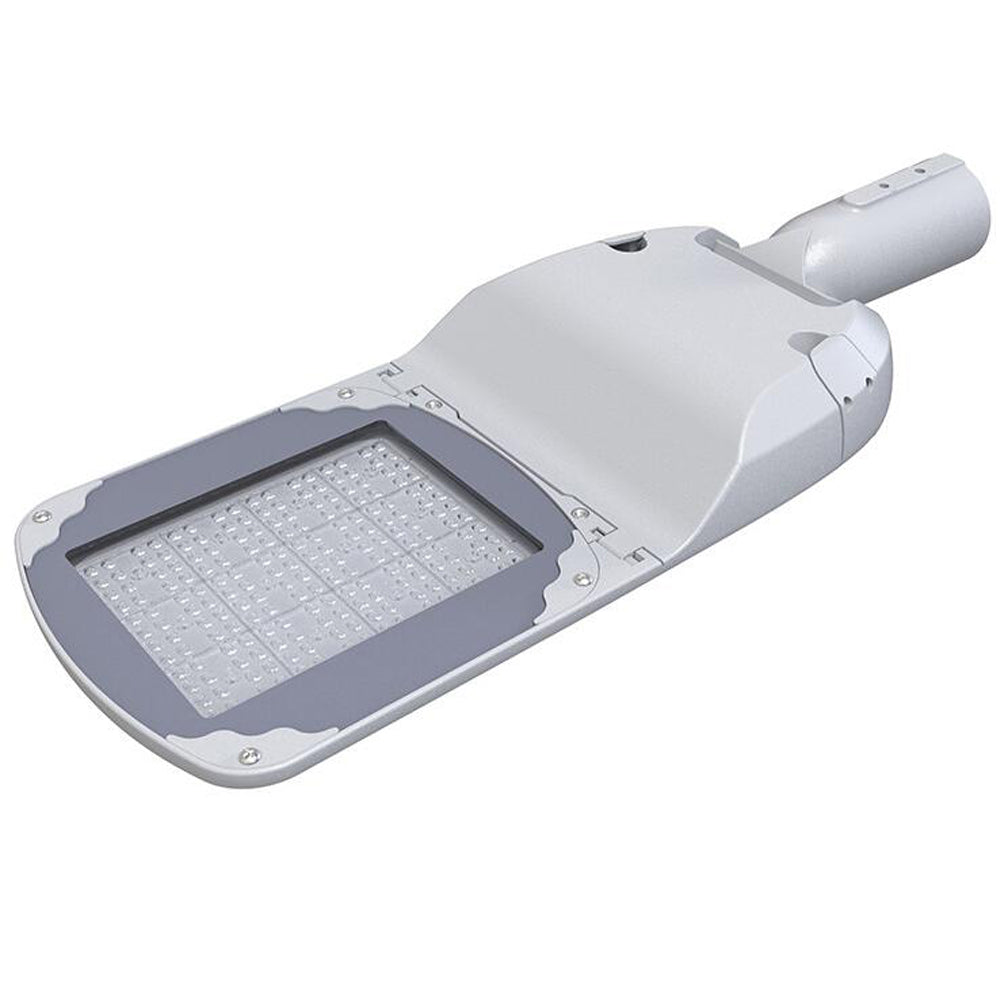

LED Street light 1906A series 30W to 150W
Die-casting aluminum housing, super resistance to corrosion.
Excellent thermal management
High efficient SMD leds
Patented optics for increased application efficiency
Input voltage: AC110-277V, 50/60Hz, IP65, IK08
Watts scope: 30W~150W
Light efficiency: 120LM/W
- Beam angle: 150*75°
NCT 1906A series luminaire is the ideal solution that fulfills requirements of functional street lighting and residential areas, which work with outstanding heat dissipation and compacting system. Equipped with high quality electrical components, long lifetime is assured. Efficient system could reduce energy consumption and create a more attractive urban living environment and visual comforts for public and residential areas.
NCT 1906A series LED street light luminaire comes with a robust optic compartment design, enable many different options of LED chipset and optic lens modules, which will help customers to always cope with the latest development of efficiency of LED by using different types of LED.
NCT 1906A series LED street light luminaire can either be post-top or side- entry mounted.

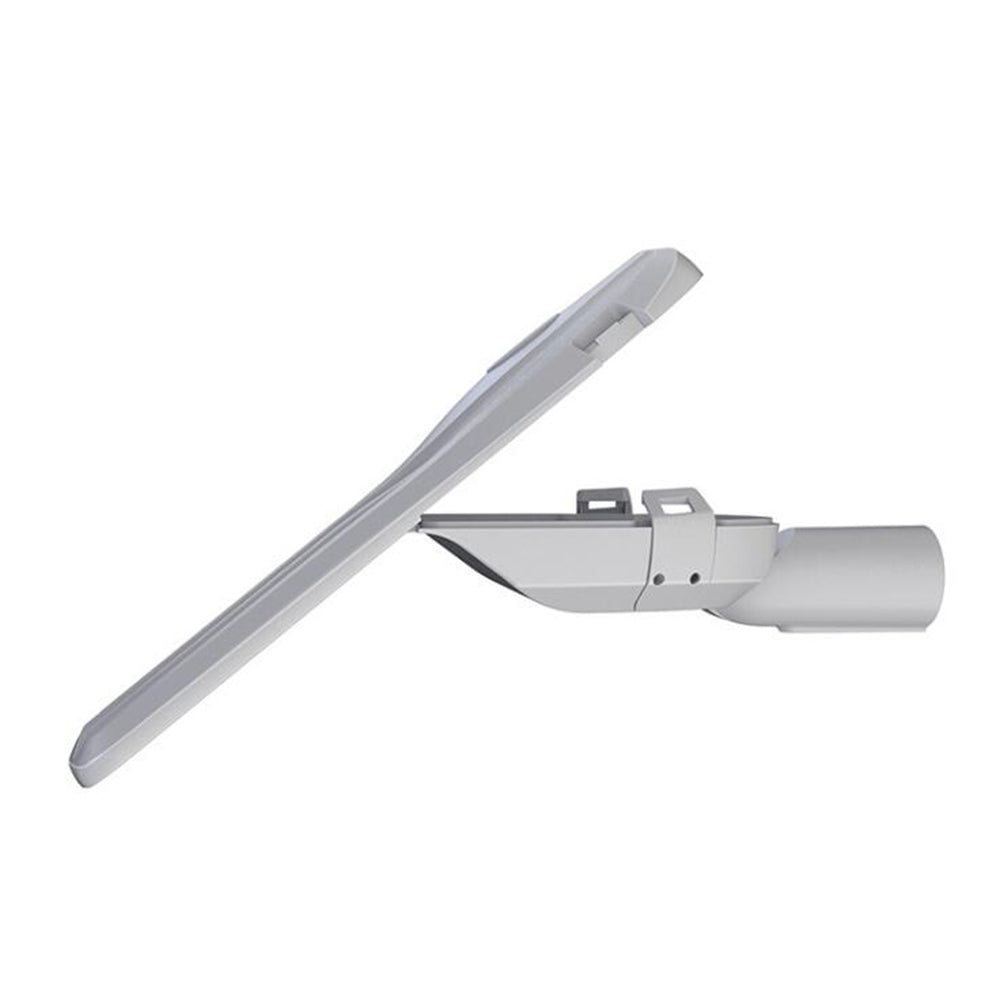

NCT 1906A series LED street light luminaires are fitted with an adjustable inclination system to facilitate photometric adjustments on-site for optimal photometric performance.
Modern and fashion design of the appearance, make the light become an artwork, integrated the environment perfectly, to made it as top project
Glass cover and acrylic lens, high strength impact resistance,
NCT 1906AS-30W/50W, 1906AM-80W/100W, 1906AL-120W/150W:
Input Voltage: 100-277V AC, 50/60 HZ
Options: 10kv/20kv SPD
Rated luminous flux: luminous efficacy: 125lm/W;
Light color: Grey
Color temperature: 4000K or customized
Protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation),
Certification: CE, ENEC, VDE, RoHS
Impact resistance: IK09,
Permissible operating ambient temperature for outdoor applications: - 25.+50°C, standard-compliant lighting for roads and squares,
Control modes for options, dimming DALI/1-10V/0/10V, Light control. Flexible luminous flux parameterization, time- dependent luminous flux control, constant luminous flux control, overheat protection, electronic power reduction;
Options: 10kv/20kv SPD
0-10V Dimming Driver
