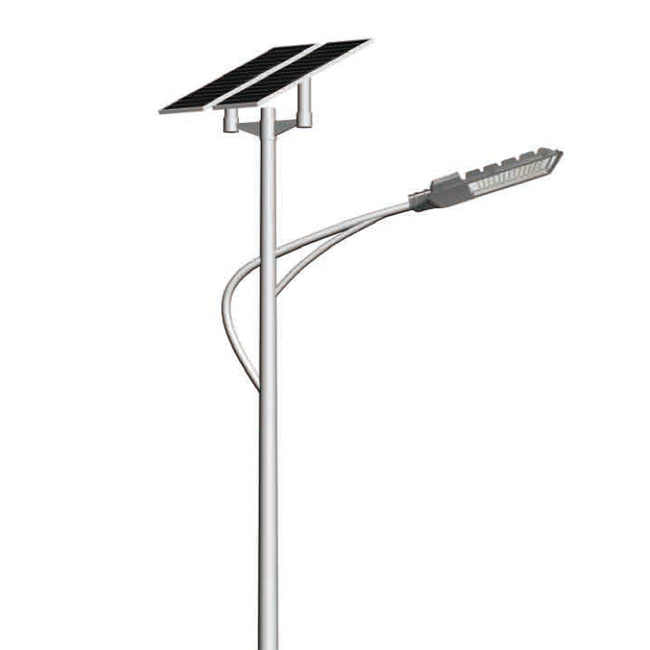

Solar LED Street Lights customized
Configurations:
- Light Fixtures
Power:20w/30w/40w/50w/60w/80w/100w or customized
Voltage:DC12V/24V
Color temperature:3000-6500K
- Solar Panel
CellsPower:50w/70w/2*50w/2*60w/2*70w/2*100w/2*120w/2*150w or customized
Nominal Voltage:18V
Efficiency of solar cells:18%
Material: Mono Cells/Poly Cells
- Wind Turbine
100w wind turbine for 20w/30w/40w led lamp or customized
300w wind turbine for 50w/60w/80w/100w led lamp or customized
Rated Voltage:12/24V
Wind Speed:35m/s
- Battery
Capacity:38AH/65AH/2*38AH/2*50AH/2*65AH/ 2*90AH/2*100AH/ 2*120AH or customized
Type: lead-acid / Lithium battery / Lithium battery & controller box
Nominal Voltage:12V/24V
- Battery Box
Material: Plastics- buried type for Lead-acid battery
Material: Aluminum- mounted type for Lithium battery
IP Rating:IP67
- Controller
Rated A/15A/20A
Nominal Voltage:12V/24V
- Pole
Height: 5m(A); Diameter: 60/140mm(d/D); Thickness: 3mm(B);Flange Plate:240*12mm(W*T) or customized
Height: 6m(A); Diameter: 60/140mm(d/D); Thickness: 3mm(B);Flange Plate:240*12mm(W*T) or customized
Height: 7m(A); Diameter: 70/160mm(d/D); Thickness: 3.5mm(B);Flange Plate:300*14mm(W*T) or customized
Height: 8m(A); Diameter: 70/160mm(d/D); Thickness: 3.5mm(B);Flange Plate:300*14mm(W*T) or customized
Height: 9m(A); Diameter: 80/180mm(d/D); Thickness: 4.0mm(B);Flange Plate:350*18mm(W*T) or customized
Height: 10m(A); Diameter: 80/200mm(d/D); Thickness: 4.0mm(B);Flange Plate:350*18mm(W*T) or customized
- Anchor Bolt
4-M16;4-M18;4-M20
- Cables
12m/15m/18m/20m/25m/30m or customized
- Working Time
work time:12 hours per day,3 days backup or customized
- Pole design
